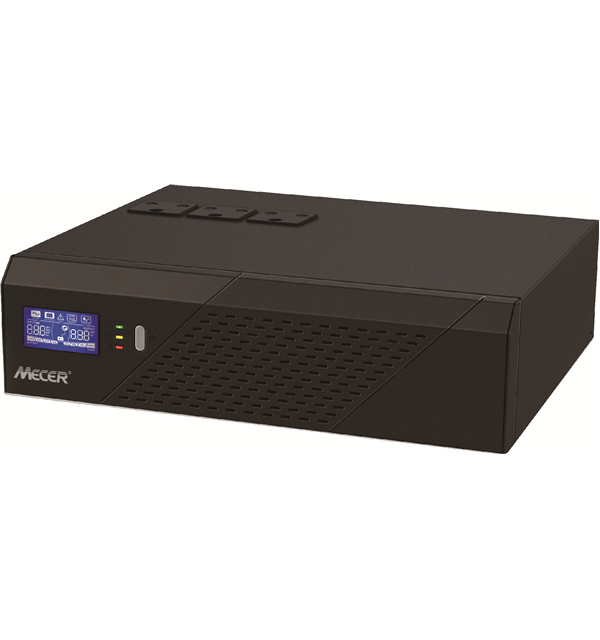

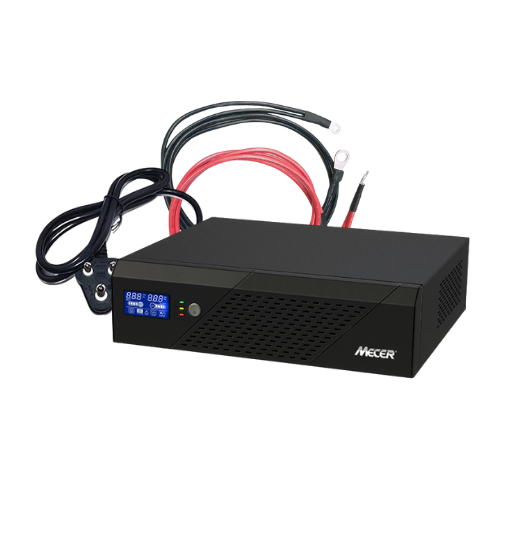

MECER 1200VA 720W 12V INVERTER

CODE: IVR-1200LBKS

R 2155

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description
Tags

Mecer has been one of South Africa's top-selling PCs over the past two decades. Mustek's ongoing interaction within the international IT industry has ensured that Mecer has remained a techno-leader at the forefront of technology.

**Please note that batteries are not included and needs to be bought separately**

This unit is also intended for use with IT equipment and will not be able to run a kettle, heater or anything that uses a motor or an element.

Features:

- Simulated sine wave inverter

- Built-in AVR for voltage regulation

- Wide input voltage range: 90-280 VAC

- 12VDC available

- Overload and short circuit protection

- LCD display for comprehensive information

Specifications:

- MODEL Mecer IVR-1200LBK

- CAPACITY 1200 VA / 720 W

- POWER FACTOR 0.8

- Input Voltage range 90-280VAC

Line Mode:

- Output Voltage

- Bypass mode: 0utput voltage same as input voltage

- AVR mode: Output voltage = Input voltage 1.2 at Input voltage - Output Frequency Same as input

Battery Mode (BATTERIES NOT INCLUDED):

- Output Voltage 230Vac +/-10%

- Transfer Time 20ms typical

- Waveform Modified Sine-wave

Overload Capability:

- Bypass Mode (in VA and Watts) Load >110%+/-15% , alarm 5 mins then fault

- Load >130% +/-15%, fault immediately.

- AVR Mode (in VA and Watts)at Input voltage > 170VAC Load >100%+/-15%, go to bypass mode

- AVR Mode (in VA and Watts)at Input voltage < 170VAC Load >60%+/-15%, go to bypass mode

- Battery Mode (in W) Load>110% +/-15%, overload alarm for 15s, and then will switch to fault mode for 10s. Then unit will re-start for 5 times Load>120% +/-15% , fault & cut off O/P immediately.

Short Circuit Protection:

- Line Mode Breaker

- Battery Mode Current limit +Firmware Protection

Battery specs needed (NOT INCLUDED):

- Battery Voltage 12VDC

- Acceptable Battery Type Rechargeable lead-acid battery, Deep discharge battery

- Polarity Reserve Protection Yes

- Charger available I/P range 90 280V

Charger:

- Constant Current Charger Voltage 14.3VDC +/-2%

- Floating Charge Voltage 13.7VDC +/-2%

- Maximum Charge Current 10A or 20A
