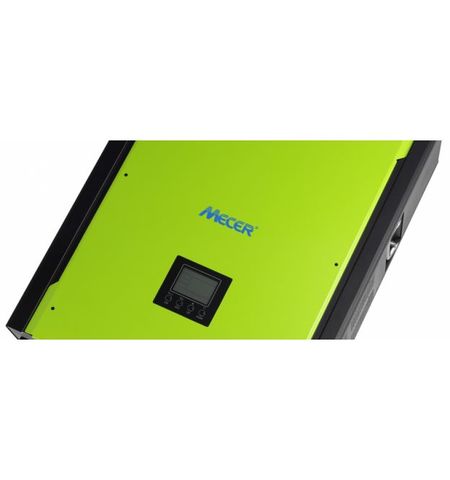

MECER Infinisolar 15kW 3 Phase
Overview:
Mecer InfiniSolar is a hybrid inverter which combines solar system, AC utility, and battery power source to supply continuous power. It is suitable for the remote areas where the cost of utility is too high or emergency usage when utility is not stable.
Features:
- 2KW/3KW/5KW on-grid inverter with energy storage
- Pure sine wave output
- Microprocessor controlled to guarantee stable charging system
- Multiple operations: Grid tie, Off grid, and grid-tie with backup
- Built-in MPPT solar charger
- LCD display panel for comprehensive information
- Multiple communication
- Green substitution for generators
- User-adjustable battery charging current
| Specifications | |
| Product Code | SOL-I-IS-3MPlus |
| Model | Infinisolar 3kw |
| Phase | 1-phase In / 1-phase Out |
| Rated Output Power | 3000 W |
| Maximum Charging Power | 1200 W |
| Grid-tie Operation Pv Input (dc) | |
| Maximum Dc Power | 3200w |
| Nominal Dc Voltage / Maximum Dc Voltage | 360 Vdc / 500 Vdc |
| Start-up Voltage / Initial Feeding Voltage | 116 Vdc / 150 Vdc |
| Mpp Voltage Range | 250 Vdc ~ 450 Vdc |
| Number Of Mpp Trackers / Maximum Input Current | 1 / 1 X 13 A |
| Grid Output (ac) | |
| Nominal Output Voltage | 208/220/230/240 Vac |
| Output Voltage Range | 184 - 264.5 Vac |
| Nominal Output Current | 13.1 A |
| Power Factor | > 0.99 |
| Efficiency | |
| Maximum Conversion Efficiency (dc/ac) | 0.96 |
| European Efficiency@ Vnominal | 0.95 |
| Off-grid Operation Ac Input | |
| Ac Start-up Voltage/auto Restart Voltage | 120 - 140 Vac / 180 Vac |
| Acceptable Input Voltage Range | 170 - 280 Vac |
| Number Of Mpp Trackers / Maximum Input Current | 25 A |
| Pv Input (dc) | |
| Maximum Dc Voltage | 500 Vdc |
| Mpp Voltage Range | 250 Vdc ~ 450 Vdc |
| Maximum Input Current | 1 / 1 X 13 A |
| Battery Mode Output (ac) | |
| Nominal Output Voltage | 208/220/230/240 Vac |
| Output Waveform | Pure Sinewave |
| Efficiency (dc To Ac) | 0.93 |
| Hybrid Operation Pv Input (dc) | |
| Nominal Dc Voltage / Maximum Dc Voltage | 360 Vdc / 500 Vdc |
| Start-up Voltage / Initial Feeding Voltage | 116 Vdc / 150 Vdc |
| Mpp Voltage Range | 250 Vdc ~ 450 Vdc |
| Maximum Input Current | 1 / 1 X 13 A |
| Grid Output (ac) | |
| Nominal Output Voltage | 208/220/230/240 Vac |
| Output Voltage Range | 184 - 264.5 Vac |
| Nominal Output Current | 13.1 A |
| Ac Input | |
| Ac Start-up Voltage/auto Restart Voltage | 120 - 140 Vac / 180 Vac |
| Acceptable Input Voltage Range | 170 - 280 Vac |
| Maximum Ac Input Current | 25 A |
| Battery Mode Output (ac) | |
| Nominal Output Voltage | 208/220/230/240 Vac |
| Efficiency (dc To Ac) | 0.93 |
| Battery & Charger | |
| Nominal Dc Voltage | 48 Vdc |
| Maximum Charging Current | 25a |
| Physical | |
| Dimension, D X W X H (mm) | 480 X 438 X 107 |
| Net Weight (kgs) | 15.5 |
| Interface | |
| Communication Port | Rs-232/usb |
| Intelligent Slot | Optional Snmp, Modbus, And As-400 Cards Available |
| Environment | |
| Humidity | 0 ~ 90% Rh (no Condensing) |
| Operating Temperature | 0 To 40øc |
| Altitude | 0 ~ 1000 M |
