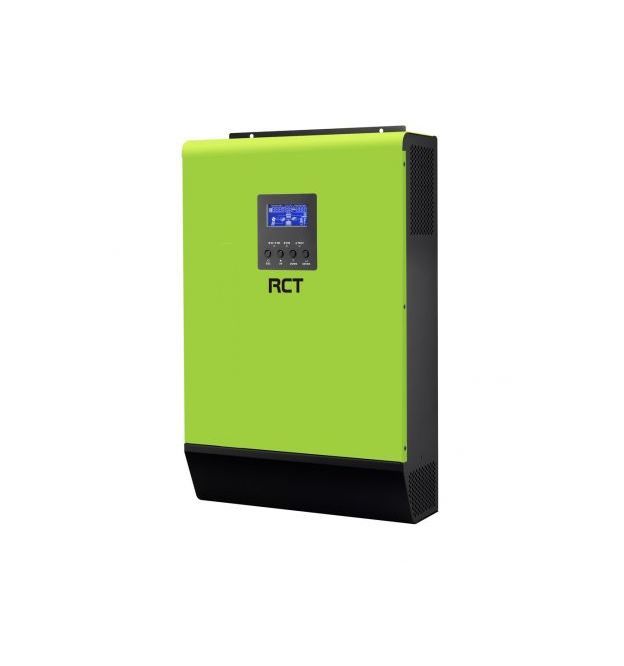

RCT AXPERT 5K MK2 5000VA/5000W INVERTER 48V DC WITH 4500W 450VDC MPPT CHARGER AND PARALLEL KIT.

CODE: RCT-AXPERT 5K MK2

R 6785

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

RCT AXPERT 5K MK2 5000VA/5000W INVERTER 48V DC WITH 4500W 450VDC MPPT CHARGER AND PARALLEL KIT.

Axpert MKS II 5KVA with MPPT solar charger
Axpert MKS is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. Transformerless design provides reliable power conversion in compact size. Besides, its worry-free to start up motor-type loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TVs, Computers, power tool and battery chargers.

Features:

Pure sine wave inverter
Output power factor 1 (only 0.8 for 3KP/5KP Models)
Built-in battery equalization function to extend battery life cycle
Built-in MPPT solar charge controller
Selectable input voltage range for home appliances and personal computers
Selectable charging current based on applications
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Battery equalization for optimized battery performance and lifecycle
Parallel operation with up to 9 units only available for Axpert MKS 3KP/4KVA/5KVA*

Specifications
Product Code	RCT-AXPERT 5K MK2
Model	Axpert MKS II 5K
Rated Power	5000 VA / 5000 W
Parallel Capability	Yes, 9 units
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances)
Frequency Range	60/50 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ñ 5%
Surge Power	10000 VA
Efficiency (Peak)	90%
Transfer Time	10 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform	Pure Sine Wave
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	66 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage	450 VDC
Maximum PV Array Power	4500 W
MPPT Range @ Operating Voltage	120 VDC~430 VDC
Maximum Solar Charge Current	80A
Maximum AC Charge Current	80A
Maximum Charging Current	80A
PHYSICAL
Dimension, D X W X H (mm)	120 x 295 x 468
Net Weight (kgs)	11
OPERATING ENVIRONMENT
Operating Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0øC to 55øC
Storage Temperature	-15øC to 60øC
