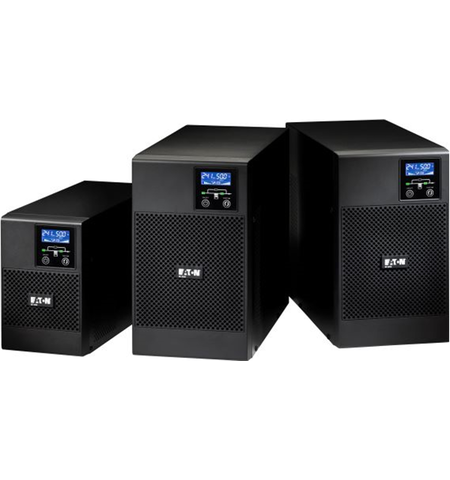

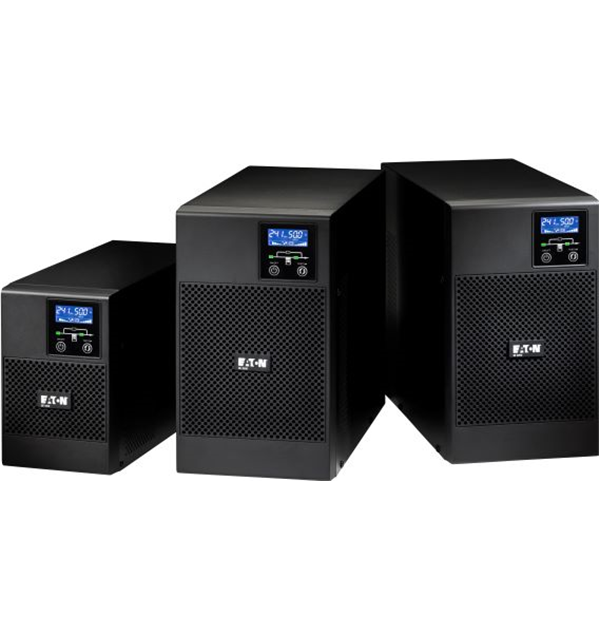

Eaton 9E 1000I On-Line Tower UPS 9E1000I
EATON 9E1000I 1000VA/800W Tower Online double conversion USB UPS, Retail Box , 1 year Limited Warranty
Specifications | |
| Product Code | 9E1000I |
| Specifications | |
| Product Code | 9E1000I |
| Description | EATON 9E1000I 1000VA/800W Tower Online double conversion USB UPS |
| General | |
| Topology | Online double conversion |
| Configuration | Tower |
| Part Number | 9E1000I |
| Rating (VA/Watts) | 1000/800 |
| Dimensions (H x W x D, mm) | 356 x 228 x 144 |
| Weight (kg) | 9.5 |
| Electrical Input | |
| Connection | (1) IEC-320-C14 |
| Input Voltage Range | 176-300V without derating (up to 100-300V with derating) |
| Nominal Voltage | 208/220/230/240V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 40-70 Hz |
| Electrical Output | |
| Voltages | 208V*/220V/230V/240V ñ1% |
| Voltage THD | <2% for 100% linear load |
| Outlets | (4) IEC-320-C13 |
| Overload Capacity | 105%-130% : 60s, 130%-150% : 10s, >150% : ? 300ms |
| Efficiency (Normal Mode) | Up to 91% in Online mode |
| Output Frequency | 50/60 Hz autoselect |
| Communications | |
| Communication Ports | 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously) |
| Communication Slot | 1 slot for Network-M2, ModBus-MS or Relay-MS cards |
| Power Management Software | Intelligent Power Editions |
| Environmental & Standards | |
| Audible Noise | <37 dB @ typical load |
| Operating Temperature | 0 to 40øC |
| Safety markings | IEC/EN 62040-1 |
| EMC Markings | IEC/EN 62040 -2 |
| Approvals | CE, CB report (TUV) |
