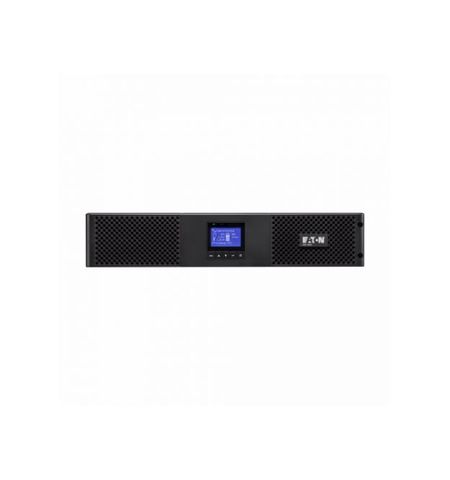

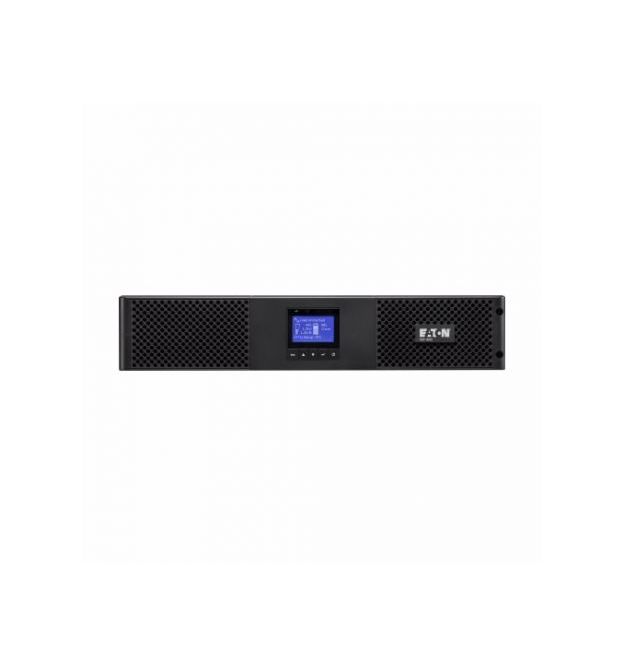

Eaton 9SX 2000I Rack2U 9SX2000iR

CODE: 9SX2000iR

R 34530

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

Eaton 9SX2000iR 9SX 2000I Rack2U 1800W On-Line USB Rack UPS

SPECIFICATIONS
Brand	Eaton
Series	9SX
Model	9SX2000iR
General
Topology	On-Line Double Conversion With PFC (Power Factor Correction) System
Configuration	Rack 2U
Rating (VA/Watts)	2000 VA / 1800 W
Electrical Input
Technology	On-Line Double-Conversion with Power Factor Correction (PFC) System
Nominal Voltage	200 / 208 / 220 / 230 / 240 V
Input Voltage Range	200-276V Without Derating (Up to 140-276V With Derating)
Input Frequency Range / THDI	40-70Hz, 50/60Hz Autoselection, Frequency Converter Mode
Connections
Input	1 IEC C14 (10A)
Outputs	8 IEC C13 (10A) Sockets
Switched Outlet Group	2 Outlet Groups
Batteries
9SX 1000	Typical Backup Times: 8
Battery Management	ABM and Temperature Compensated Charging Method (User Selectable), Automatic Battery Test, Deep Discharge Protection, Automatic Recognition of External Battery Units.
Communications
Communication Ports	1x USB Port
	1x Serial RS232 Port
	1x Mini-Terminal Block for Remote Power Off
	1x Mini-Terminal Block for Output Relay
Communication Slot	1x Slot for Network-M2, Network-MS, ModBus-MS or Relay-MS Cards
General
Operating Temperature	0° - 40°
Typical Noise Level	45dB
Safety	IEC/EN 62040-1, UL 1778, CSA 22.2
EMC	IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B
Approvals & Marking	CE /CB Report (TUV) / cULus / EAC / RCM / BIS (Tower Models Only) / KCC (Tower Models Only)
Dimensions	86.5 x 438 x 608 mm
Weight	26.5 kg
Warranty Information
Warranty	2 Year Warranty
