Home/Load Shedding Solutions/Ups/RCT 2000VA On-Line Tower UPS (RCT-2000-WPTU)

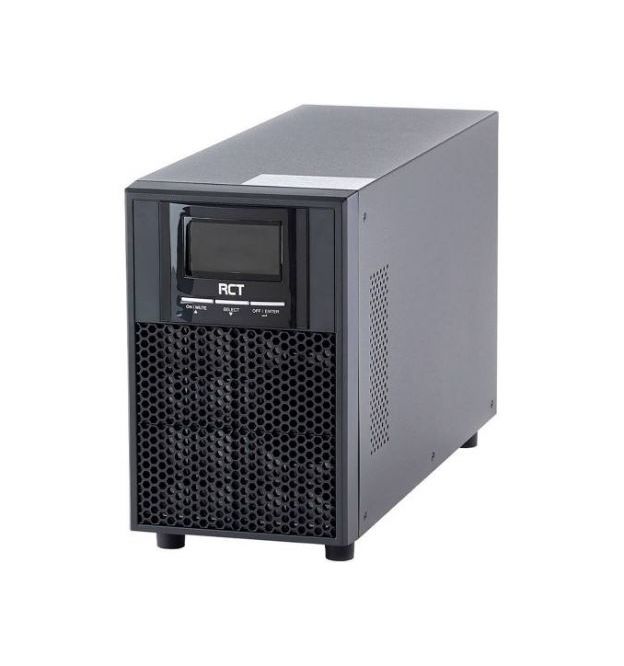

RCT 2000VA On-Line Tower UPS (RCT-2000-WPTU)

CODE: RCT-2000-WPTU

R 5830

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

RCT 2000VA On-Line Tower UPS (RCT-2000-WPTU)

Capacity
2000 VA / 1600 W

Input
Voltage
100/110/115/120/127 VAC or 200/208/220/230/240 VAC

Voltage Range
55-150 VAC or 110-300VAC @ 50% Load, 85-140 VAC or 160-280 VAC @ 100% load

Frequency Range
40 Hz ~ 70 Hz

Power Factor
? 0.99 @ nominal voltage (100% load)

Output
Output Voltage
100/110/115/120/127 VAC or 200/208/220/230/240 VAC

AC Voltage Regulation (Batt. Mode)
ñ1%

Frequency Range (Synchronized Range)
47~53 Hz or 57~63 Hz

Frequency Range (Batt. Mode)
50 Hz ñ 0.25 Hz or 60 Hz ñ 0.3 Hz

Current Crest Ratio
3:1 (max.)

Harmonic Distortion
? 3 % THD (Linear Load) ; ? 6 % THD (Non-linear Load)

Transfer Time
AC Mode to Batt. Mode
Zero

Inverter to Bypass
4 ms (Typical)

Waveform (Batt. Mode)
Pure Sine Wave

Efficiency
AC Mode
88 %

Battery Mode
87%

Battery
Standard Model
Battery Type
12 V / 9 Ah

Numbers
4

Typical Recharge Time
4 hours recover to 90% capacity

Charging Current (max.)
1 A

Charging Voltage
54.7 VDC ñ 1%

Long-run Model
Battery Type
Depending on the applications running

Numbers
2ÿÿ ÿ6ÿÿ ÿ8

Charging Current (max.)
1A/2A/4A/6A (Adjustable)

Charging Voltage
54.7 VDC ñ 1%ÿÿ ÿ82.1 VDC ñ 1%

Indicators
LCD Display
UPS Status, Load Level, Battery Level, Input/Output Voltage, Discharge timer and Fault conditions

Alarm
Battery Mode
Sounding every 4 seconds

Low Battery
Sounding every second

Overload
Sounding every twice second

Fault
Continuously Sounding

Physical
Standard Model
Dimensions, D X W X H(mm)
397ÿ x 140 x 220

Net Weight (kgs)
17

Long-run Model
Dimensions, D X W X H(mm)
391ÿ x 145 x 220

Net Weight (kgs)
6.8

Environment
Humidity
20-90 % RH @ 0- 40ø (non-condensing)

Noise Level
Less than 50dB @ 1 meter

Management
Smart RS-232 and USB
Supports Windows© 2000/2003/XP/Vista/2008. Windows© 7/8, Linus and MAC

Optional SNMP
Power management from SNMP manager and web browser
