Home/Load Shedding Solutions/Ups/RCT 6000VA 4800W On-Line Tower UPS RCT-6000-WPTU

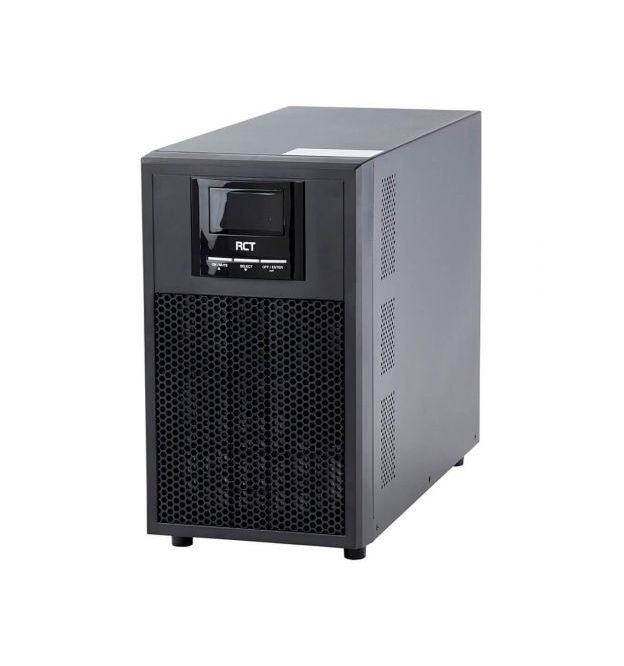

RCT 6000VA 4800W On-Line Tower UPS RCT-6000-WPTU

CODE: RCT-6000-WPTU

R 16875

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

RCT 6000VA On-Line Tower UPS (RCT-6000-WPTU)

Capacity
6000 VA / 4800 W

Input
Voltage
208/220/230/240 VAC

Voltage Range
110-300VAC @ 50% Load, 176-300VAC @ 100% load

Frequency Range
46~54 Hz or 56~64 Hz

Power Factor
? 0.99 @ nominal voltage (100% load)

Output
Output Voltage
220/230/240 VAC

AC Voltage Regulation (Batt. Mode)
ñ1%

Frequency Range (Synchronized Range)
46~54 Hz or 56~64 Hz

Frequency Range (Batt. Mode)
50 Hz ñ 0.1 Hz or 60 Hz ñ 0.1 Hz

Current Crest Ratio
3:1 (max.)

Harmonic Distortion
? 3 % THD (Linear Load) ; ? 5 % THD (Non-linear Load)

Transfer Time
AC Mode to Batt. Mode
Zero

Inverter to Bypass
Zero

Waveform (Batt. Mode)
Pure Sinewave

Efficiency
AC Mode
92 %

Battery Mode
90%

Battery
Standard Model
Battery Type
12 V / 9 Ah

Numbers
16

Typical Recharge Time
9 hours recover to 90% capacity

Charging Current (max.)
1 A / 2 A

Charging Voltage
218.4 VDC ñ 1%

Long-run Model
Battery Type
Depending on the applications running

Numbers
16~20 (Adjustable)

Charging Current (max.)
1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries)

Charging Voltage
218.4 VDC ñ 1% (Based on 16pcs Batteries)

Indicators
LCD Display
UPS Status, Load Level, Battery Level, Input/Output Voltage, Discharge timer and Fault conditions

Alarm
Battery Mode
Sounding every 4 seconds

Low Battery
Sounding every second

Overload
Sounding every twice second

Fault
Continuously Sounding

Physical
Standard Model
Dimensions, D X W X H(mm)
369ÿ x 190 x 688

Net Weight (kgs)
61

Long-run Model
Dimensions, D X W X H(mm)
369ÿ x 190 x 318

Net Weight (kgs)
12

Environment
Humidity
0-95 % RH @ 0- 50ø (non-condensing)

Noise Level
Less than 55dB @ 1 meter

Management
Smart RS-232 and USB
Supports Windows© 2000/2003/XP/Vista/2008. Windows© 7/8, Linus and MAC

Optional SNMP
Power management from SNMP manager and web browser
