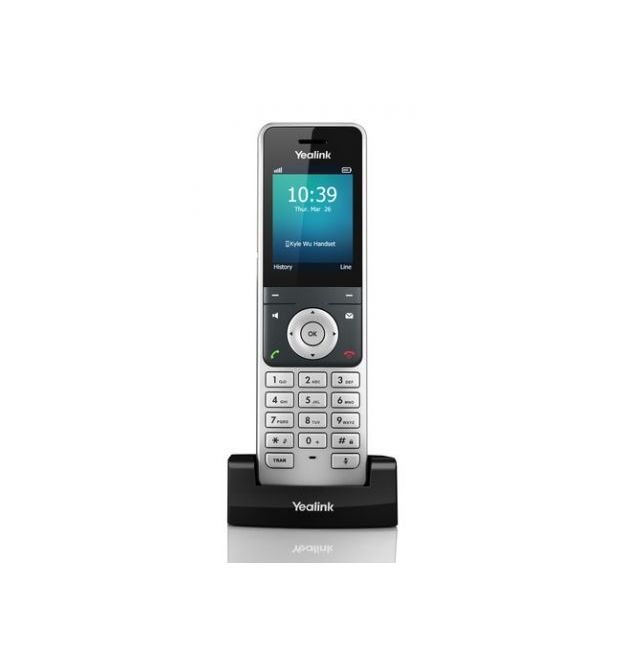

YEALINK W56H IP DECT PHONE HANDSET ONLY
YEALINK W56H IP DECT PHONE HANDSET ONLY
Specifications | |
| Product Code | YEA-W56H |
| Phone Features | Up to 4 simultaneous calls |
| Up to 5 handsets, up to 5 VoIP accounts | |
| Handset select for receiving call | |
| Handset and Number select for making call | |
| Paging, intercom, auto answer | |
| Call hold, call transfer, 3-way conferencing | |
| Switching between calls | |
| Call waiting, mute, DND | |
| Caller ID display, redial | |
| Anonymous call, anonymous call rejection | |
| Call forward (always/busy/no answer) | |
| Speed dial, voicemail, silence | |
| Message Waiting Indication (MWI) | |
| Local phonebook for up to 500 entries (store in the base) | |
| Remote phonebook/LDAP | |
| Phonebook search/import/export | |
| Call history outgoing/missed/accepted) | |
| Direct IP call without SIP proxy | |
| Reset to factory, reboot | |
| Keypad lock, emergency call | |
| Dial Plan, music on hold | |
| Broadsoft directory, BroadSoft Call Log | |
| Broad works feature key synchronization | |
| Shared Call Appearance (SCA) | |
| Personalization | 9 ringer melodies |
| Screen saver | |
| Multi-language support | |
| Management | Auto-provision via FTP/TFTP/HTTP/HTTPS |
| Auto-provision with PnP | |
| Handset upgrade: OTA (Over-The-Air) | |
| Configuration: browser/phone/auto-provision | |
| Trace package and system log export | |
| Voice and Codecs Features | Full-duplex speakerphone |
| Hearing Aid Compatibility (HAC) compliant | |
| Receiver volume control: 5 steps | |
| Ringer volume control: 5 steps off | |
| Multiple advisory tones | |
| Acoustic warning for low battery status | |
| DTMF | |
| Wideband codec: G.722 | |
| Narrowband codec: | |
| G.711 micron /A, G.723, G.726, G.729, iLBC | |
| VAD, CNG, AEC, PLC, AJB | |
| Support VQ-RTCPxR (RFC6035) | |
| Network Features | SIP v1 (RFC2543), v2 (RFC3261) |
| SNTP/NTP | |
| VLAN (802.1Q and 802.1P) | |
| 802.1x, LLDP, PPPoE | |
| STUN Client (NAT Traversal) | |
| UDP, TCP | |
| IP assignment: static/DHCP | |
| Support outbound proxy server backup | |
| Security | Open VPN |
| Transport Layer Security (TLS) | |
| HTTPS (server/client) | |
| SRTP (RFC3711) | |
| Digest authentication using MD5 | |
| Secure configuration file via AES encryption | |
| Support SHA256/SHA512/SHA384 | |
| Admin/Var/User 3-level configuration mode | |
| DECT | |
| Frequency bands | 1880 - 1900 MHz (Europe), |
| 1920 - 1930 MHz (US) | |
| DECT Standards: CAT-iq2.0 | |
| Connectors | 1 x RJ45 10/100M Ethernet port |
| Power over Ethernet (IEEE 802.3af) | |
| Headset jack (3.5 mm) | |
| Physical Features | Indoor Range: 20m approx. 50m (The ideal distance is 50m) |
| Outdoor Range: 300m (In ideal conditions) | |
| Standby Time: 400h (In ideal conditions) | |
| Talk Time: 30h | |
| 2 4" 240x320 pixels color display | |
| Desktop or wall mountable | |
| LCD backlit, key backlit | |
| Energy-saving ECO mode/ECO Mode+ | |
| 12 key numerical keypad, 5 navigation keys 2 soft keys, 6 function keys, 6 shortcut keys | |
| 3 LEDs on Base: 1 x power, 1 x Network, 1 x Call | |
| Charger: DC 5V/600mA Output | |
| Phone size: 175mm x 53mm x 20.3mm | |
