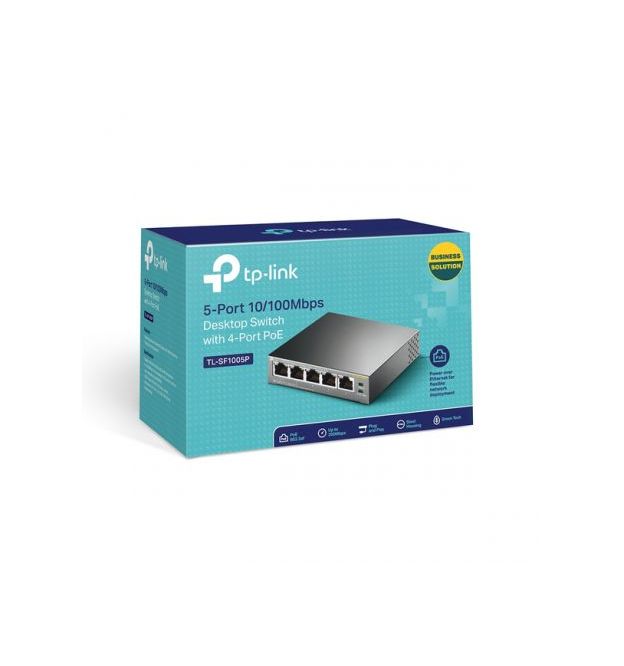

TP-Link TL-SF1005P Unmanaged Network Switch Fast Ethernet 10/100 Mbits PoE Black
TP-Link TL-SF1005P 5-Port 10/100Mbps Desktop Switch
| SPECIFICATIONS | |
| Brand | TL-Link |
| Series | Unmanaged Switches |
| Model | TL-SF1005P |
| Colour | Black |
| Interface | 5x 10/100Mbps RJ45 Ports |
| AUTO Negotiation/AUTO MDI/MDIX | |
| Network Media | 10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m) |
| EIA/TIA-568 100? STP (Maximum 100m) | |
| 100BASE-TX: UTP Category 5, 5e Cable (Maximum 100m) | |
| EIA/TIA-568 100? STP (Maximum 100m) | |
| Fan Quantity | Fanless |
| MAC Address Table | 2K |
| Switching Capacity | 1Gbps |
| Transmission Method | Store-And-Forward |
| Power Consumption (Maximum) | 1.7W (No PD Load) |
| 64.8W (With 58W PD Load) | |
| Heat Dissipation (Maximum) | 5.7BTU/h (No PD Load) |
| 221.2BTU/h (With 58W PD Load) | |
| Advanced Functions | Compatible With IEEE 802.3af Compliant PDs |
| Priority Function | |
| Mac Address Auto-Learning And Auto-Aging | |
| IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode | |
| External Power supply | External Power Adapter (Output: 48VDC / 1.25A) |
| PoE Ports (RJ45) | Standard: 802.3af (15.4W) |
| PoE Ports: Port1- Port4 | |
| Total PoE Budget: 58W | |
| Compliance | FCC, RoHS |
| Operating Temperature | 0 - 40øC |
| Storage Temperature | -40 - 70øC |
| Dimensions | 99.8 x 98 x 25 mm |
| Package Contents | TL-SF1005P |
| Power Adapter | |
| User Guide | |
| Warranty Information | |
| Warranty | Manufacturer's Warranty |
