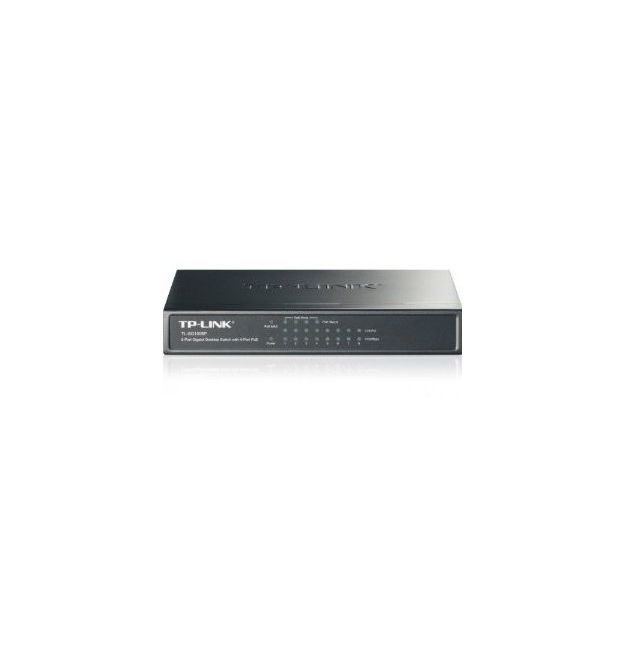

TP-Link TL-SF1008P Unmanaged Network Switch Fast Ethernet 10/100 Mbits PoE Olive
TP-LINK TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE
| SPECIFICATIONS | |
| Brand | TP_LINK |
| Model | TL-SF1008P |
| Hardware Features | |
| Interface | 8 10/100Mbps RJ45 Ports |
| AUTO Negotiation/AUTO MDI/MDIX | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100? STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100? STP (maximum 100m) | |
| Fan Quantity | Fanless |
| Dimensions (W X D X H) | 171*98*27 mm |
| Power Consumption | Maximum (PoE on): 60.2W (220V/50Hz) |
| Maximum (PoE off): 3.2W (220V/50Hz) | |
| External Power Supply | External Power Adapter(Output: 48VDC / 1.25A) |
| PoE Ports (RJ45) | Standard: 802.3 af compliant |
| PoE Ports: Port1- Port4 | |
| Power Supply: 57W | |
| Backbound Bandwidth | 1.6Gbps |
| Mac Address Table | 2K |
| Software Features | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af Compliant PDs |
| Priority Function | |
| Mac Address Auto-Learning And Auto-Aging | |
| IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode | |
| Others | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SF1008P, Power Adapter, User Guide |
| Consumption | 2.3 watts (max. no PD connected) |
| 59.3 watts (max. with 57w PD connected) | |
| Environment | Operating Temperature: 0øC~40øC |
| Storage Temperature: -40øC~70øC | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| Warranty Information | |
| Warranty | 12 Month Warranty |
