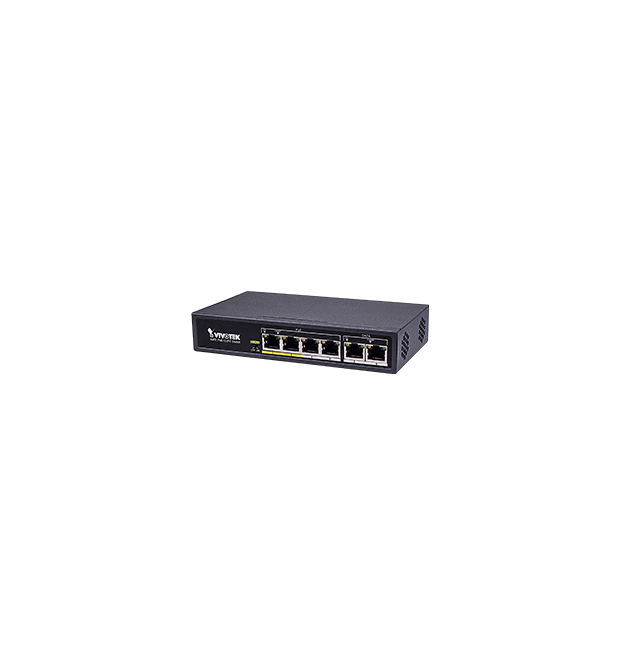

VIVOTEK Unmanaged 4xFE PoE + 2xFE UTP Switch
Technical Specifications
- Model
- AW-FET-060C-065
- Short Highlight
- 4xFE PoE + 2xFE UTP
Networking Specifications
- 10/100Mbps RJ45 PoE Port
- 4
- 10/100Mbps RJ45 Port
- 2
- 10/100/1000Mbps RJ45 Port
- -
- Gigabit SFP Slot
- -
- Gigabit RJ45/SFP Combo Ports
- -
- EX Mode PoE (200M@10Mbps)
- 2
* EX Mode:
1. CAT.6 or better UTP/STP cable is highly recommended.
2. Low quality cables will seriously limit the cabling distance.
3. Ex mode doesn?t support with the FE8391-V model.
- VLAN Mode
- -
Ethernet Performance
- Switching Capacity
- 1.2 Gbps
- Mac Table
- 2 K
- Jumbo Frame
- 1536 Bytes
- Auto-MDI/MDI-X, Auto-Negotiation
- Supported
Power Specifications
- Power Input Voltage
- 100VAC ~ 240VAC
- Max. PoE Output Power
- Per Port 54VDC, Max. 30W
- Total PoE Power Budget
- 60W
- IEEE 802.3af/at
- Supported
- Power Pin Assignment
- 1/2(+), 3/6(-)
- PoE PD Auto Detection
- Supported
- Surge Protection/Each PoE Port
- 4 KV
- Surge Protection for AC Power
- 4 KV
General
- Operating Temperature
- 0øC ~ 50øC (32øF ~ 122øF)
- Storage Temperature
- -20øC ~ 70øC (-4øF ~ 158øF)
- Operating Humidity
- 10% ~ 90% non-condensing
- Dimensions
- 168 (L) x 94.1 (W) x 32 (H) mm
- Weight
- 0.5 kg
Certifications
- EMC
- CE, FCC, VCCI, C-Tick Class A
- Safety
- EN60950-1, IEC60950-1
