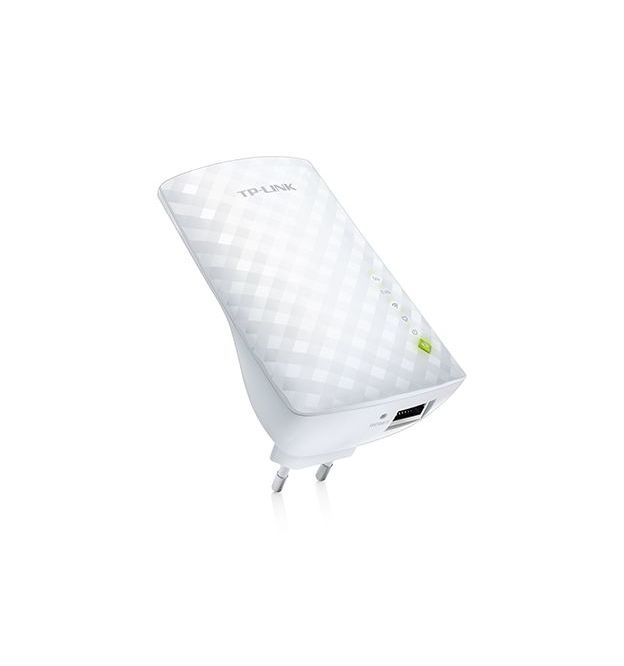

TP-LINK AC750 Dual Band Wireless Wall Plugged Range Extender (TL-RE200)

Hardware Features

Standards and Protocols
IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Interface
1 * 10/100M Ethernet Port (RJ45)

Button
RE (Range Extender) Button, Reset Button

Power Consumption
About 6.5W

Dimensions ( W x D x H )
4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)

Antenna
3 * internal

Wireless Features

Frequency
2.4GHz & 5GHz

Signal Rate
5GHz:Up to 433Mbps
2.4GHz:Up to 300Mpbs

Reception Sensitivity
2.4G:
270M: -70dBm@10% PER
130M: -70dBm@10% PER
108M: -73dBm@10% PER
54M: -75dBm@10% PER
11M: -86dBm@8% PER
6M: -92dBm@10% PER
1M: -94dBm@8% PER
5G:
390M: -60dBm@10% PER
29.3M: -83dBm@10% PER
180M: -64dBm@10% PER
13.5M: -87dBm@10% PER
78M: -68dBm@10% PER
6.5M: -90dBm@10% PER
54M: -75dBm@10% PER
6M?-90dBm@10% PER

Transmit Power
< 20 dBm (EIRP)

Wireless Modes
Range Extender

Wireless Functions
WMM (Wi-Fi Multimedia)
Wireless Statistic
Domain Login Function

Wireless Security
64/128/152-bit WEP
WPA-PSK / WPA2-PSK

Others

Certification
CE, FCC, RoHS

Package Contents
AC750 Wi-Fi Range Extender RE200
RJ-45 Ethernet Cable
Resource CD
Quick Installation Guide

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux.

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
