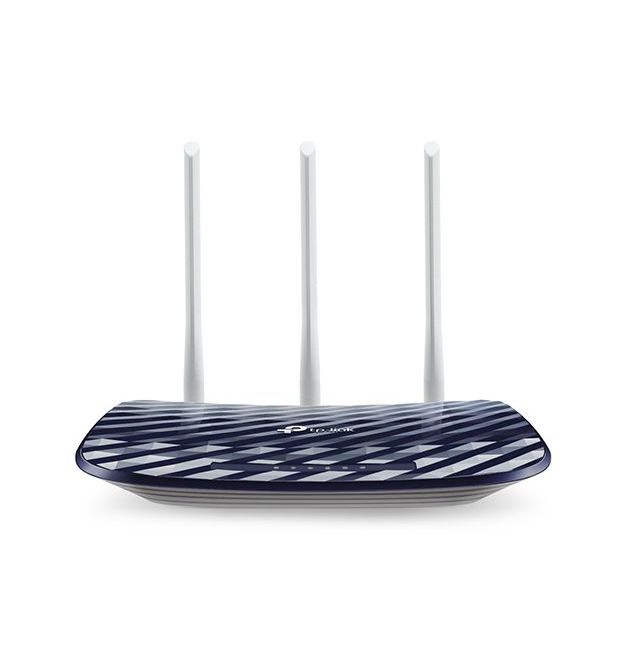

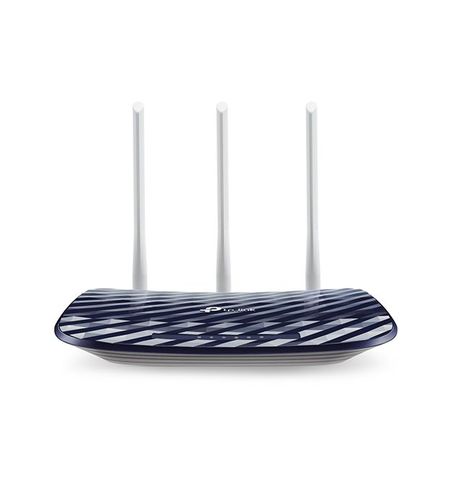

TP Link Archer C20 AC750 Wireless Dual Band Router
TP Link Archer C20 AC750 Wireless Dual Band Router
| SPECIFICATIONS | |
| Brand | TP-Link |
| Series | Wi-Fi Routers |
| Model | Archer C20 |
| Wireless Specifications | |
| Wireless Standards | IEEE 802.11ac/n/a 5GHz |
| IEEE 802.11b/g/n 2.4GHz | |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5 GHz: Up to 433 Mbps |
| 2.4 GHz: Up to 300 Mbps | |
| Reception Sensitivity | 5GHz: 11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm; 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9: -62dBm |
| 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -73dBm; 11n HT40 MCS7: -71dBm | |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK Encryption |
| Transmission Power | CE: <20dBm(2.4GHz), <23dBm(5GHz) |
| Software Specifications | |
| Quality of Service | WMM, Bandwidth Control |
| Management | Access Control, Local Management, Remote Management |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comexe, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 1x 2.4 GHz Guest Network |
| 1x 5 GHz Guest Network | |
| Hardware Specifications | |
| Interface | 4x 10/100 Mbps LAN Ports |
| 1x 10/100 Mbps WAN Port | |
| Buttons | WPS/Wi-Fi Button |
| Reset Button | |
| Power On/Off Button | |
| External Power Supply | 9V/0.6A(EU), 9V/0.85A(US) |
| Antenna | 2ž 2.4 GHz Antennas |
| 1ž 5 GHz Antenna | |
| Compliance | CE, RoHS |
| Operating Temperature | 0øC - 40øC |
| Storage Temperature | -40øC - 70øC |
| Operating Humidity | 10 - 90 % Non-Condensing |
| Storage Humidity | 5 - 90 % Non-Condensing |
| Dimensions | 230 x 144 x 35 mm |
| Warranty Information | |
| Warranty | Manufacturer's Warranty |
