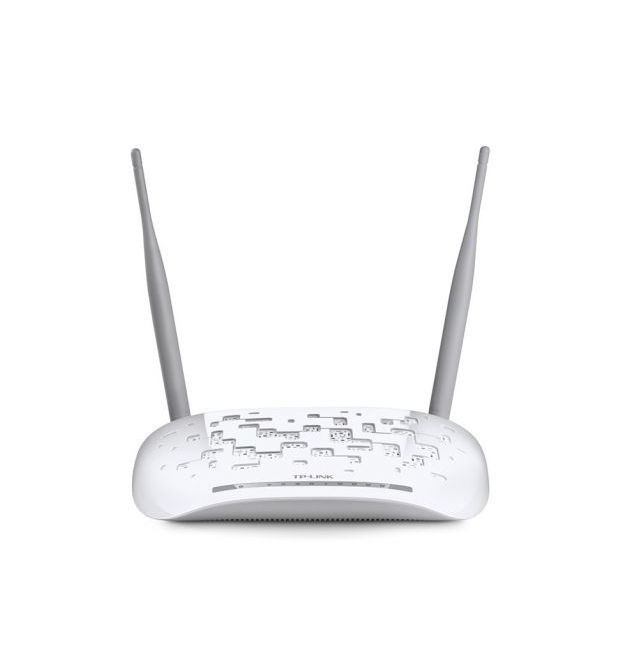

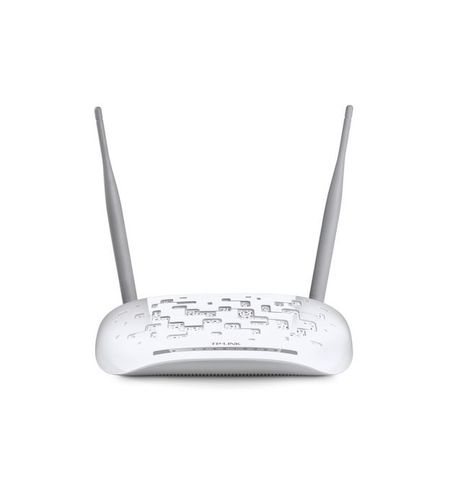

TP-LINK TD-W9970 Wireless N VDSL2 Modem Router

SPECIFICATIONS
Brand	TP-LINK
Model	TD-W9970
Hardware Features
Interfaces	4 10/100Mbps RJ45 Ports
	1 RJ11 Port
	1 USB 2.0 Port
Button	1 Power On/Off Button
	1 WPS/RESET Button
	1 Wi-Fi On/Off Switch
imensions (W X D X H)	19513036mm
External Power Supply	12VDC/1A
IEEE Standards	IEEE 802.3, 802.3u
VDSL2 Standards	ITU-T G.993.2
VDSL2 Standards	ITU-T G.993.5 (G.vector)
ADSL Standards	Full-rate ANSI T1.413 Issue 2
	ITU-T G.992.1(G.DMT)
	ITU-T G.994.1 (G.hs)
	ITU-T G.995.1
ADSL2 Standards	ITU-T G.992.3 (G.dmt.bis)
ADSL2+ Standards	ITU-T G.992.5
Antenna Type	Omni directional, Fixed
Antenna Gain	2 x 5dBi
Wireless Features
Wireless Standards	IEEE 802.11b, 802.11g, 802.11n
Frequency	2.400-2.4835GHz
Transmit Power	<20dBm(EIRP)
Wireless Security	Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
Wireless Security	Wireless MAC Filtering
Software Features
Quality of Service	WMM, Bandwidth Control (IP QoS)
Security	NAT Firewall
	SPI Firewall
	MAC / IP / URL Filtering
IPv6	IPv6 and IPv4 dual stack
	Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
	Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
Management	Web Based Configuration(HTTP)
	Remote management
	Telnet management
	Command Line Interface
	SSL for TR-069
	SNMP V1/V2C
	Web Based Firmware Upgrade
	CWMP(TR-069)
	Diagnostic Tools
Port Forwarding	Virtual server, Port Triggering, UPnP, DMZ, Manage Control
VPN Pass-Through	PPTP, L2TP, IPSec Pass-through
ATM/PPP Protocols	ATM Forum UNI3.1/4.0
	PPP over ATM (RFC 2364)
	PPP over Ethernet (RFC2516)
	IPoA (RFC1577/2225)
	PVC - Up to 8 PVCs
Advanced Features	Ethernet WAN (EWAN)
	Guest Network, Wireless Schedule
	Parent Control
	Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt
	Dynamic Host Configuration Protocol (DHCP), DHCP relay
	Network Address Translation (NAT)
	PVC/Ethernet Port Grouping
	Static Routing, RIP v1/v2 (optional)
	DNS Relay, DDNS
	IGMP snooping V1/2
	IGMP Multicast
	UPnP
USB Sharing	Storage Sharing
	FTP Server
	Media Server
	Print Server
IGMP	IGMP snooping V1/V2/V3
IGMP	IGMP Multicast
IPSec VPN	10 IPSec VPN Tunnels
	LAN-to-LAN
	Main, Aggressive Negotiation Mode
	DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
	MD5, SHA1 Authentication Algorithm
	Manual, IKE Key Management Mode
	Dead Peer Detection (DPD)
	Perfect Forward Secrecy (PFS)
Others
Certification	CE, FCC, RoHS
Package Contents	TD-W9970
	External Splitter
	RJ-11 Telephone Line
	RJ-45 Ethernet Cable
	Quick Installation Guide
	Resource CD
	Power Adapter
System Requirements	Windows 8.1/8/7/Vista/XP or Mac OS or Linux-based operating system
Environment	Operating Temperature: 0øC~40øC
	Storage Temperature: -40øC~70øC
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
Warranty Information
Warranty	12 Month Warranty
