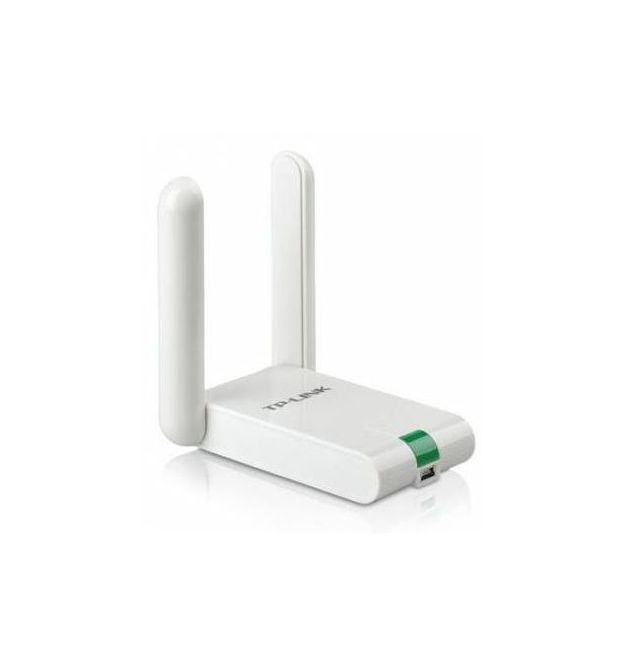

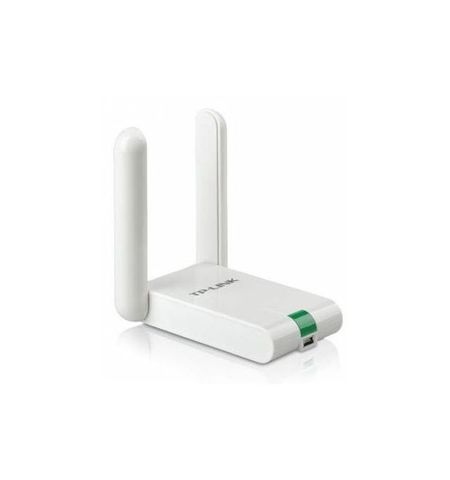

TP-Link TL-WN822N Networking Card WLAN 300 Mbit/s
TP-LINK 300MBPS HIGH GAIN WI-FI USB ADAPTER, 2T2R
| HARDWARE FEATURES | |
|---|---|
| Interface | Mini USB 2.0 |
| Button | WPS Push Button/Software |
| Dimensions ( W x D x H ) | 3.5 x 2.7 x 0.7 in. (90 x 68 x 16.8mm) |
| Antenna Type | Dual Omni Directional |
| Antenna Gain | 3dBi |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.400-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
| Transmit Power | <20dBm(EIRP) |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Advanced Functions | WMM |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | Wireless Adapter TL-WN822N Resource CD Quick Installation Guide 1.5m USB Cable |
| System Requirements | Windows 10/8.1/8/7 Mac OS Linux |
| Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
