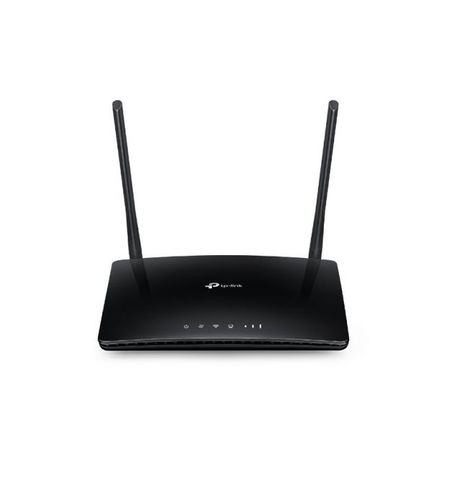

TP-Link TL-MR6400 Wi-Fi 4 Wireless Router - Single-band 2.4GHz Fast Ethernet 3G 4G Black
TP-Link TL-MR6400 300Mbps 4G LTE Wireless Router
| SPECIFICATIONS | |
| Brand | TP-Link |
| Series | 3G/4G Routers |
| Model | TL-MR6400 |
| Wireless Specifications | |
| Wireless Standards | IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz |
| Signal Rate | 300Mbps at 2.4GHz |
| Reception Sensitivity | 11g 54M: -74dBm |
| 11n HT20: -71dBm | |
| 11n HT40: -67dBm | |
| Transmit Power | CE: <20dBm (2.4GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption |
| Network Type (V1) | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz), TDD-LTE B38/B40 (2600/2300MHz), 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz), 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz) |
| Network Type (V2) | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz), TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz), 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz), 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz) |
| Network Type (V3) | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz), TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz), 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) |
| Network Type(APAC V3) | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz), TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz), 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) |
| Software Features | |
| Operating Modes | 3G/4G Router, Wireless Router |
| Management | Access Control, Local Management, Remote Management Reboot Schedule |
| WAN Connection Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | VPN |
| VPN | PPTP VPN, IPSec VPN , OpenVPN |
| Access Control | Parental Control, Local Management Control |
| Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 1x 2.4GHz Guest Network |
| Hardware Specifications | |
| Interface | 3x 10/100Mbps LAN Ports |
| 1x 10/100Mbps LAN/WAN Port | |
| 1x Micro SIM Card Slot | |
| Button | WPS/Reset Button, Wireless On/Off Button, Power On/Off Button |
| External Power Supply (EU) | 9V / 0.85A |
| External Power Supply (APAC) | 12V / 1A |
| Antenna Type | 2x Internal 4G LTE Antennas |
| 2x Fixed External WiFi Antennas | |
| Compliance | CE, RoHS |
| Dimensions | 202 x 145 x 34 mm |
| Package Contents | 300Mbps Wireless N 4G LTE Router, TL-MR6400 |
| RJ45 Ethernet Cable | |
| Power Adapter | |
| Quick Installation Guide | |
| Warranty Information | |
| Warranty | Manufacturer's Warranty |
